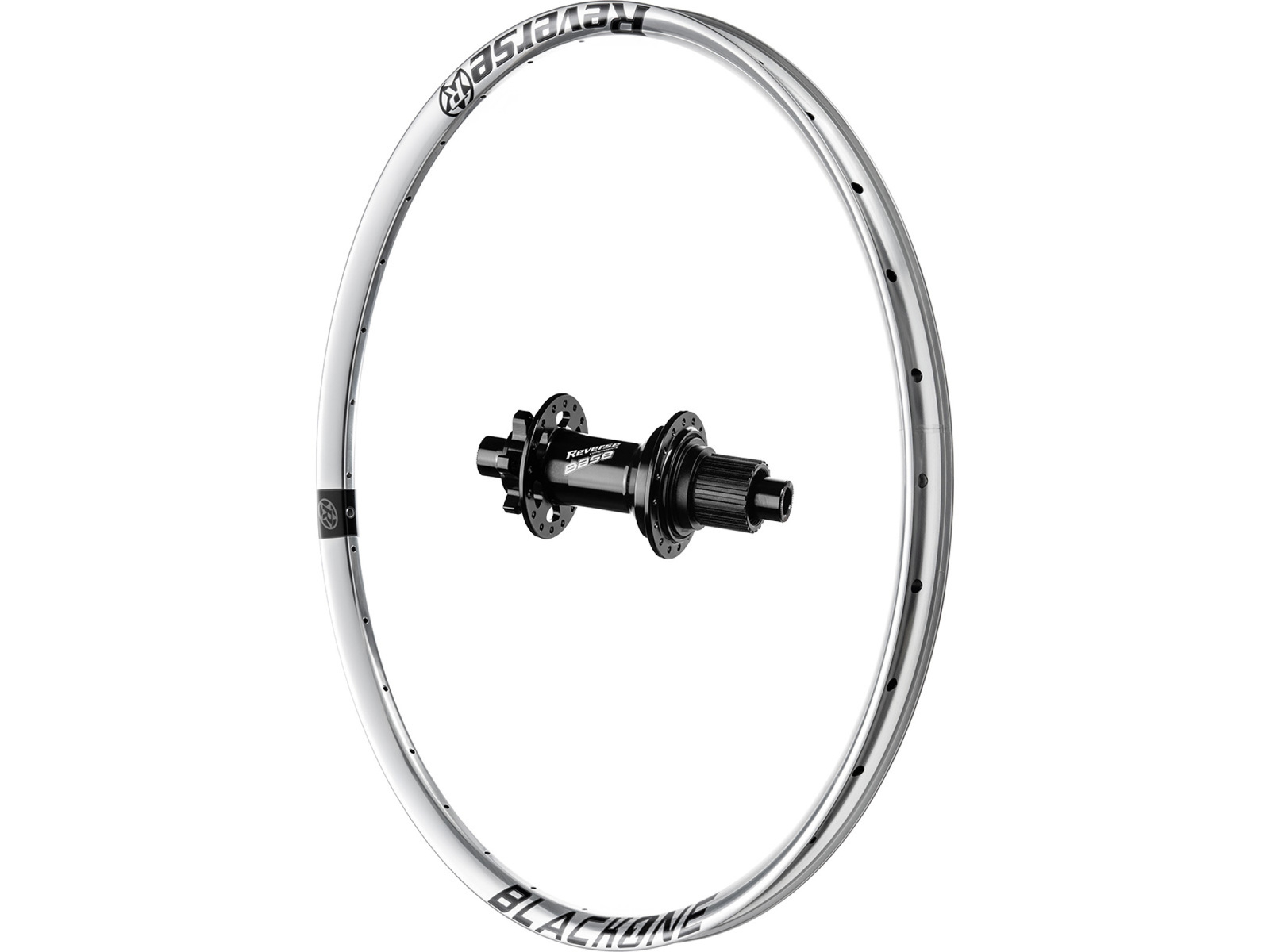

Product information Whether it's a technical trail, a rough enduro descent or your daily ride, Reverse Black One wheels are made for riders who don't compromise. Designed with maximum control, stability and reliability in mind, they offer the perfect balance of lightness and robustness. The 30 mm wide 6069-T6 aluminium rim ensures excellent grip and a direct riding feel, no matter what the conditions. The Reverse Base hubs with triple-crossed spokes guarantee precise handling and high rigidity with optimal weight – even under the toughest conditions. Tech. Specs.:

• Size: 29"
• Inner Width: 30 mm
• Tubeless Ready
• Freehub: Shimano HG / Shimano Micro Spline / SRAM XD
• Weight: from 1 kg
• Usage: Trail, Enduro, light Downhill
• Tubeless Ready, incl. tubeless tape und tubeless valve

Rim:

• Tubeless Ready
• Size: 29"
• Holes: 32
• ERD: 595 mm
• Outer width: 35 mm
• Inner widht: 30 mm
• Depth: 21,8 mm
• Weight: 549 g (+/- 5 % tolerance)
• Valve: Presta / SV

Hubs rear wheel:

• Holes: 32
• 6 ratchets
• Steel Axle
• RW: 148/12 mm Boost, Sram XD freehub (wheel Manufacturer-Art.-Nr. 17289 (silver) und 17294 (grey))
  • 4 bearings RW hub: (body: 2x 6902 2RS freehub: 2x 15257 2RS)
  • SRAM XD freehub
  • Weight: 344g (+/- 5 % tolerance)
• RW: 148/12 mm Boost, Shimano Microspline freehub (wheel Manufacturer-Art.-Nr. 17288 (silber) und 17293 (grau))
  • 4 bearing RW hub: (hub: 2x 6902 2RS freehub: 1x 15257 2RS + 2x 6802 2RS)
  • Shimano Microspline freehub
  • Weight: 344g (+/- 5 % tolerance)
• RW: 148/12 mm Boost, Shimano HG freehub (wheel Manufacturer-Art.-Nr. 17287 (silber) und 17292 (grau))
  • 4 bearings RW hub: (hub: 2x 6902 2RS freehub: 1x 15257 2RS + 1x 6902 2RS)
  • SRAM XD freehub
  • Weight: 344g (+/- 5 % tolerance)
• RW: 157/12 mm Boost, Shimano DH7 freehub (wheel Manufacturer-Art.-Nr. 17291 (silber))
  • 4 bearings RW: (hub: 2x 6903 2RS freehub: 2x 17287 2RS)
  • Freehub: Shimano HG short (7-speed HG cassettes)
  • Weight: 430g (+/- 5 % tolerance)
• RW: 150/12 mm Boost, Shimano DH7 freehub (wheel Manufacturer-Art.-Nr. 17290 (silber))
  • 4 bearings RW: (hub: 2x 6903 2RS freehub: 2x 17287 2RS)
  • Freehub: Shimano HG short (7-speed HG cassettes)
  • Weight: 430g (+/- 5 % tolerance)

Hubs front wheel:

• FW: 20x110 mm Super Boost (wheel Manufacturer-Art.-Nr. 17309 (silber))
  • 2 bearings FW: 6804 2RS
  • Weight: 208g (+/- 5 % tolerance)
• FW: 15x110 mm Super Boost (wheel Manufacturer-Art.-Nr. 17308 (silber))
  • 2 bearings FW: 6902 2RS
  • Weight: 143g (+/- 5 % tolerance)

Spokes:

• Sapim Race (black)

Nipple:

• Sapim Secure Lock

Weight:

• Total: 1,1 kg

Rim colour:

• Silver rim with black decals
• Black rim with grey decals

Material:

• Rim and hub: Aluminium
• Spokes: Stainless steel
• Nipples: Brass
